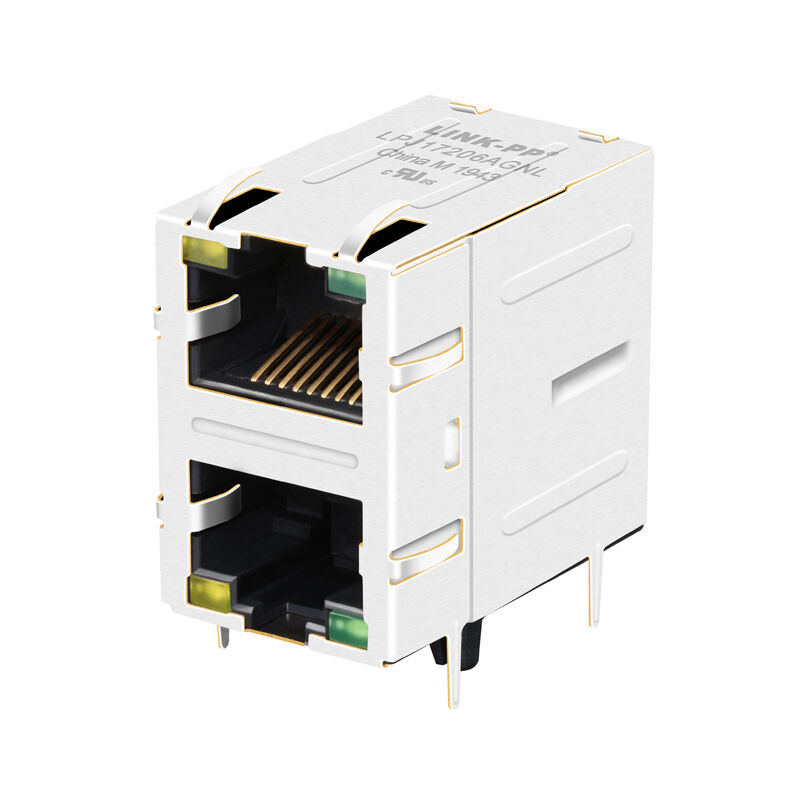

LPJ17206AGNL 2x1 Stacked RJ45 Magjack 10/100Base-T with EMI Tabs

LINK-PP LPJ17206AGNL 2x1 port stacked RJ45 connector. Features 10/100 Base-T integrated magnetics, EMI spring fingers, LED indicators, and industrial operating temp (-40℃ to +85℃) for reliable networking.

Key Features of LPJ17206AGNL Stacked RJ45 Magjack:

The LINK-PP LPJ17206AGNL is a high-performance 2x1 (stacked) RJ45 Magjack connector engineered for reliable 10/100 Base-T Ethernet applications. Designed to maximize PCB real estate, this dual-port through-hole connector features integrated magnetics, built-in EMI spring fingers for superior noise suppression, and highly visible Yellow/Green LED indicators. Built to withstand industrial operating temperatures from -40℃ to +85℃, the LPJ17206AGNL provides a robust, space-saving networking interface ideal for SOHO modems, switches, hubs, and LAN-on-Motherboard (LOM) designs.

• Supports 10/100Base-T Fast Ethernet
• 2×1 stacked RJ45 port configuration
• Integrated Ethernet magnetics (MagJack)
• Built-in EMI spring fingers for enhanced EMC performance
• Dual integrated LED indicators
• Through-hole (THT) mounting
• Right-angle (90°) side-entry design
• Latch supports both Up and Down orientations
• 1500Vrms isolation voltage
• Industrial operating temperature: -40°C to +85°C
• IEEE 802.3 compliant
• RoHS compliant
• UL Certified (File No. E484635)

Specifications of RJ45 2x1:

2x1 RJ45 Connector Datasheet:

ELECTRICAL SPECIFICATIONS (@ 25℃)

MECHANICAL AND MATERIAL SPECIFICATIONS

1. Housing Material: Black Thermoplastic PBT + 30% Glass Fiber (G.F), Flammability Rating UL94V-0
2. Contact Material: Phosphor Bronze C5210R-EH (0.35mm thickness)
3. Contact Plating: Gold 6 micro-inches (6μ") minimum in the contact area
4. Pin Material: Brass C2680R-H (0.35mm thickness)
5. Shield Material: Stainless Steel SUS 304-1/2H, 0.2mm thickness
6. Wave Soldering Temperature: 250℃ for 5 Seconds

Why Choose LINK-PP RJ45 MagJack Solutions?

LINK-PP is a professional manufacturer specializing in Ethernet connectivity products, including RJ45 MagJack connectors, LAN transformers, and high-speed networking components.

The LPJ17206AGNL delivers:

• Space-Saving 2x1 Design: Stacked dual-port configuration maximizes port density on the PCB.
• Advanced EMI Shielding: Equipped with EMI spring fingers on the shield to ensure superior electromagnetic interference suppression.
• Industrial-Grade Reliability: Extended operating temperature range of -40℃ to +85℃ ensures stable performance in harsh environments.
• Optimized Signal Integrity: Integrated 10/100Base-T magnetics with a minimum 350uH OCL (at 8mA DC bias) prevent data loss and cross-talk.
• Global Compliance: Fully meets IEEE 802.3 specifications, UL Certified (E484635), and RoHS compliant (2011/65/EU).

Whether developing industrial networking equipment, embedded systems, routers, or Ethernet switches, the LPJ17206AGNL 2×1 RJ45 Connector with 10/100Base-T Integrated Magnetics provides a reliable, compact, and cost-effective networking interface solution for professional Ethernet applications.
