プロダクト細部
起源の場所: 広東省、中国
ブランド名: LINK-PP
証明: UL,RoHS,Reach,ISO
モデル番号: J9151D
支払及び船積みの言葉
最小注文数量: 400/2000/10K/25K
価格: $3.2-$5
パッケージの詳細: T＆R
受渡し時間: 3日以内に株式船で
支払条件: TT、Net30/60/90日
供給の能力: 3kk/月
部品番号: |
J9151D |
100%クロス: |
LS-SM3110-10C |
シリーズ: |
SFP+ 10Gbase LR |
DOM/DDM: |
サポート |
ホットスワップ可能: |
はい |
応用: |
10GBASE-LRイーサネット |
部品番号: |
J9151D |
100%クロス: |
LS-SM3110-10C |
シリーズ: |
SFP+ 10Gbase LR |
DOM/DDM: |
サポート |
ホットスワップ可能: |
はい |
応用: |
10GBASE-LRイーサネット |

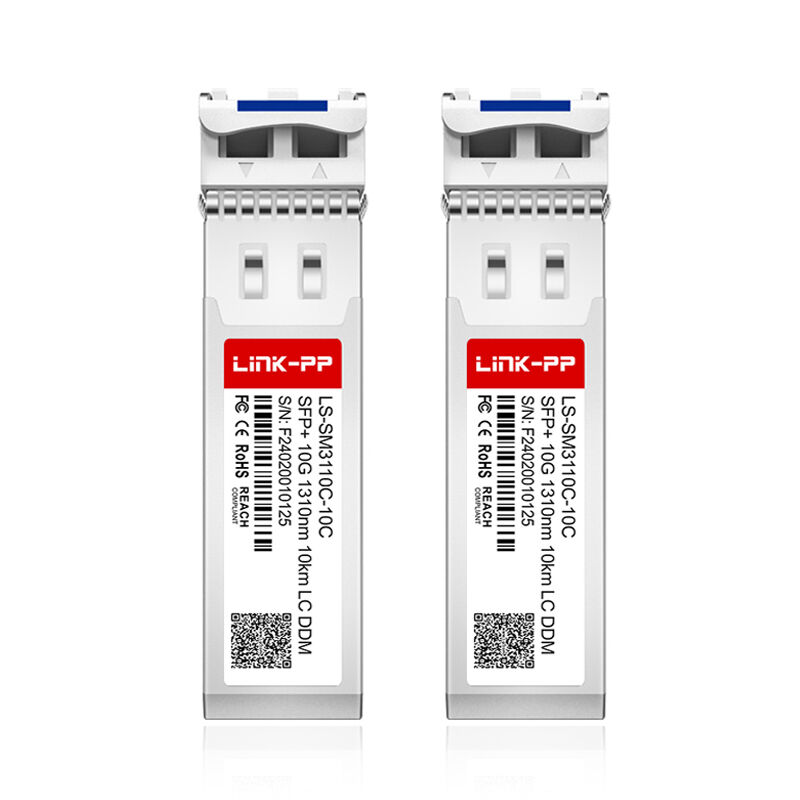

HPE Aruba J9151D 10G SFP+ LR Transceiver, 1310 nm, 10 km SMF, LC Duplex, DDM Supported — High-performance long-reach 10-Gigabit optical module for enterprise and data-center networks.
The HPE Aruba J9151D is a high-performance 10G SFP+ LR (Long-Reach) optical transceiver designed for enterprise switching, data-center interconnects, aggregation networks, and backbone links.
Operating at 1310 nm over single-mode fiber (SMF), the J9151D delivers up to 10 km transmission distance and supports full 10-Gigabit Ethernet performance.
Featuring Digital Optical Monitoring (DOM/DDM), low power consumption, and full compliance with SFP+ MSA and IEEE 802.3ae 10GBASE-LR standards, the J9151D ensures stable and reliable fiber connectivity for mission-critical deployments.
| Parameter | Specification |
|---|---|
| Model | HPE Aruba J9151D |
| Form Factor | SFP+ |
| Application | 10GBASE-LR Ethernet |
| Wavelength | 1310 nm |
| Fiber Type | Single-Mode Fiber (SMF) 9/125 µm |
| Connector |
Duplex LC |
| Parameter | Specification |
|---|---|
| Data Rate | 1.25–10.31 Gbps |
| Max Distance | 10 km over SMF |
| Transmitter Type | DFB Laser |
| Receiver Type | PIN Photodiode |
| Receiver Sensitivity | approx. −14 dBm (typical) |
| Optical Budget | approx. 6 dB (varies by vendor) |
| Parameter | Specification |
|---|---|
| Power Supply | +3.3 V |
| Operating Temperature | 0°C to 70°C (commercial) |
| Compliance | SFP+ MSA, IEEE 802.3ae, IEC-60825-1 laser safety, RoHS |
| DOM/DDM Support | Yes (temperature, voltage, Tx/Rx optical power) |
