プロダクト細部
起源の場所: 中国
ブランド名: LINK-PP
証明: UL,ROHS,Reach,ISO
モデル番号: LPJD0717DNL
文書: LPJD0717DNL.pdf
支払及び船積みの言葉
最小注文数量: 50/500/1000
価格: $0.09-$1.85
パッケージの詳細: 50pcs/tray、1200pcs/carton
受渡し時間: in 株式船 今日
支払条件: TT、Net30/60/90日
供給の能力: 6000K-PCS/月
部品番号: |
LPJD0717DNL |
スピード: |
10/100/1000ベースT |
取り付け: |
垂直、THT |
ポート構成: |
1x1ポート |
磁気学: |
統合された、 |
ターン比: |
1CT：1CT |
部品番号: |
LPJD0717DNL |
スピード: |
10/100/1000ベースT |
取り付け: |
垂直、THT |
ポート構成: |
1x1ポート |
磁気学: |
統合された、 |
ターン比: |
1CT：1CT |

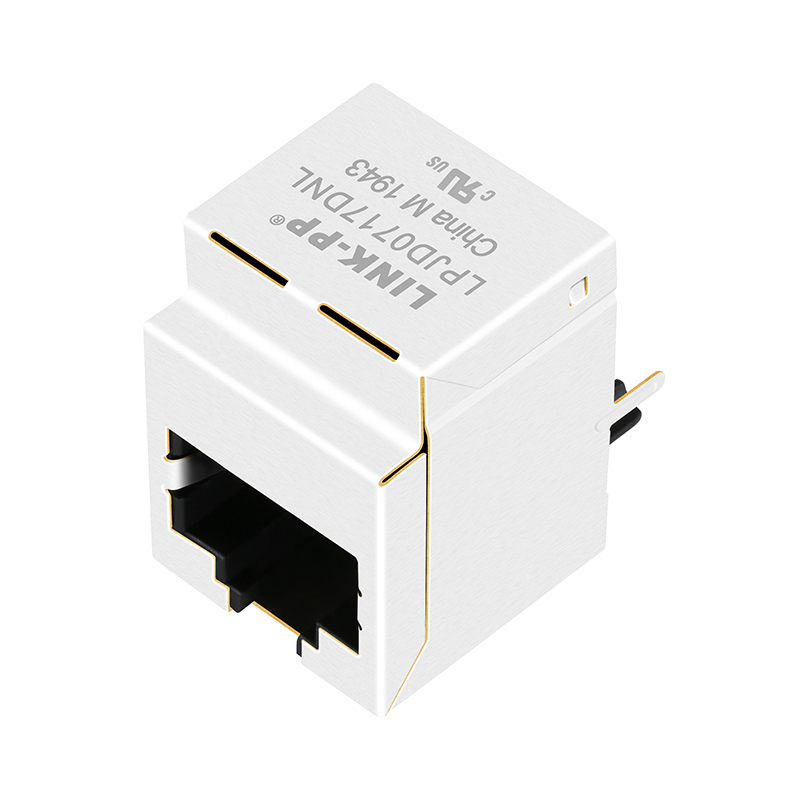

| Parameter | Specification |
|---|---|
| Part Number | LPJD0717DNL |
| Connector Type | Vertical Jack (RJ45, Ethernet) |
| Number of Positions/Contacts | 10P8C |
| Latch Orientation | Up |
| PCB Mount Angle | THT Solder |
| Shield EMI Tabs | Without |
| Package Height | 16.60mm / 0.654Inches |
| Package Length | 21.59mm / 0.850Inches |
| Package Width | 16.00mm / 0.630Inches |
| Housing Material | Thermoplastic PBT+30%G.F UL94V-0 |
| Contact Material | Phosphor Bronze C5210R-EH, Thickness=0.35mm |
| Pins Material | Brass C2680R-H, Thickness=0.35mm |
| Shield Material | Copper alloy Brass H65Y, Thickness=0.2mm |
| Contact Plating | Gold 6 micro-inches Min. in contact area. |
| Wave Solder Tip Temperature | 250°C, 5 Sec. |
| UL Certification | File Number E484635 |
| Specification | Value | Condition |
|---|---|---|
| Turn Ratio (±2%) | 1CT:1CT | Primary: Secondary (Pri : Sec) |
| Inductance OCL (Min) | 350µH | @100kHz, 0.1V, 8mA DC Bias |
| Insertion Loss (Max) | -1.0dB | 0.5 ~ 100MHz |
| Return Loss (Min) | -18dB | 0.5 ~ 40MHz |
| Return Loss (Min) | -14dB | 60MHz |
| Return Loss (Min) | -12dB | 80MHz |
| Return Loss (Min) | -10dB | 100MHz |
| Crosstalk (Min) | -35dB | 0.5 ~ 40MHz |
| Crosstalk (Min) | -30dB | 40.1 ~ 100MHz |
| Common Mode Rejection Ratio (CMRR) (Min) | -30dB | 0.5 ~ 100MHz |
| Hipot Test (Min) | 1500Vrms | |
| Operating Temperature Range | 0℃ to 70℃ |
| Parameter | HFJV1-1G46RL / HFJV1-E1G46RL |
|---|---|
| Connector Type | RJ45 Magnetic Jack |
| Port Count | 1 port |
| LED | No LEDs |
| Orientation | Top-Entry |
| Shield | Yes |
| Operating Temperature | 0°C to +70°C / -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 0-95% RH |
