プロダクト細部
起源の場所: 中国
ブランド名: LINK-PP
証明: UL,ROHS,Reach,ISO
モデル番号: HFJV1-1G46RL
支払及び船積みの言葉
最小注文数量: 50/500/1000
価格: $0.09-$3.85
パッケージの詳細: 50pcs/tray、1200pcs/carton
受渡し時間: in 株式船 今日
支払条件: TT、Net30/60/90日
供給の能力: 4200K-PCS/Month
部品番号: |
HFJV1-1G46RL / HFJV1-E1G46RL |
同等: |
LPJD0718DNL |
こんにちは鍋: |
1500Vrms |
オークル・CL: |
8mA DCバイアスで最小350uH |
PHYドライブ: |
電圧 |
タイプ: |
1000 個の磁気を備えた垂直 RJ45 コネクタ |
部品番号: |
HFJV1-1G46RL / HFJV1-E1G46RL |
同等: |
LPJD0718DNL |
こんにちは鍋: |
1500Vrms |
オークル・CL: |
8mA DCバイアスで最小350uH |
PHYドライブ: |
電圧 |
タイプ: |
1000 個の磁気を備えた垂直 RJ45 コネクタ |

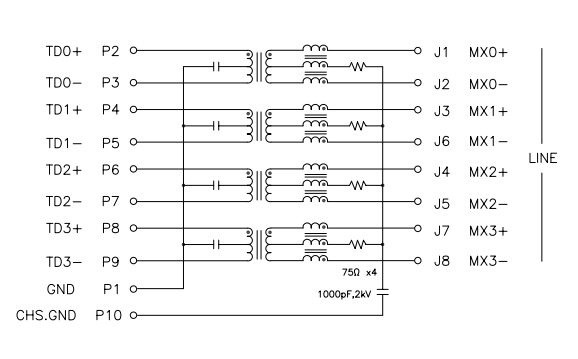

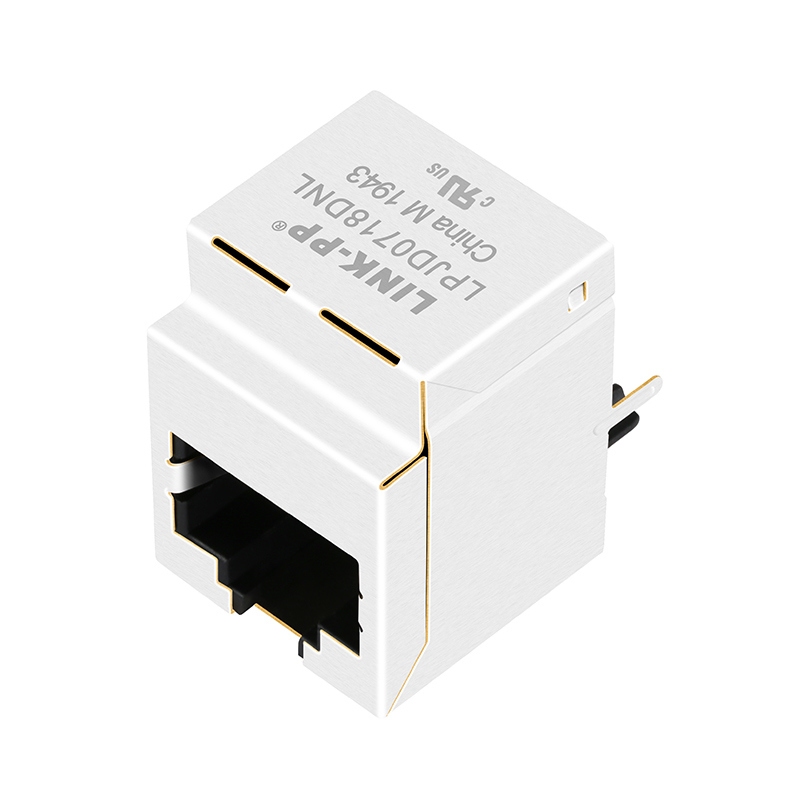

1x1 vertical shielded Gigabit RJ45 MagJack with integrated transformers, IEEE-802.3 compliant, available in standard (HFJV1-1G46RL) and industrial-temperature versions (HFJV1-E1G46RL) for networking and industrial applications.
1-port RJ45 Connector with integrated magnetics
Supports 10/100/1000Base-T Ethernet
Without LEDs
Compatible with PoE / PoE+ (IEEE 802.3af/at)
Low cross-talk & superior EMI suppression
TOP-Entry Mounting
RoHS-compliant, Halogen-free options available
Shielded housing for noise immunity
| Parameter | Specification |
|---|---|
| Ethernet Speed | 10/100/1000 Mbps |
| Transformer Ratio | 1:1 (Gigabit) |
| Compliant | IEEE 802.3 compliant |
| HI-POT | 1500VAC, 60s |
| Insulation Resistance | ≥ 500MΩ |
| Contact Resistance | ≤ 40mΩ |
| Insertion/Withdrawal Cycles | 750+ cycles |
| Parameter | HFJV1-1G46RL / HFJV1-E1G46RL |
|---|---|
| Connector Type | RJ45 Magnetic Jack |
| Port Count | 1 port |
| LED | No LEDs |
| Orientation | Top-Entry |
| Shield | Yes |
| Operating Temperature | 0°C to +70°C / -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 0–95% RH |
