プロダクト細部
Place of Origin: Guangdong,China
ブランド名: LINK-PP
証明: UL,RoHS,Reach,ISO
モデル番号: J9151A
支払及び船積みの言葉
Minimum Order Quantity: 400/2000/10K/25K
価格: $3.2-$5
Packaging Details: T&R
受渡し時間: 3日以内に株式船で
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
部品番号: |
J9151A |
フォームファクター: |
SFP+ |
最大データレート: |
10.3125Gbps |
波長: |
1310nm |
最大ケーブル距離: |
10km |
コネクタ: |
デュプレックスLC |
TXパワー: |
-8.2〜0.5dbm |
受信機の感度: |
< -14.4dBm |
消費電力: |
≤1W |
動作温度: |
0〜70°C（32〜158°F） |
部品番号: |
J9151A |
フォームファクター: |
SFP+ |
最大データレート: |
10.3125Gbps |
波長: |
1310nm |
最大ケーブル距離: |
10km |
コネクタ: |
デュプレックスLC |
TXパワー: |
-8.2〜0.5dbm |
受信機の感度: |
< -14.4dBm |
消費電力: |
≤1W |
動作温度: |
0〜70°C（32〜158°F） |

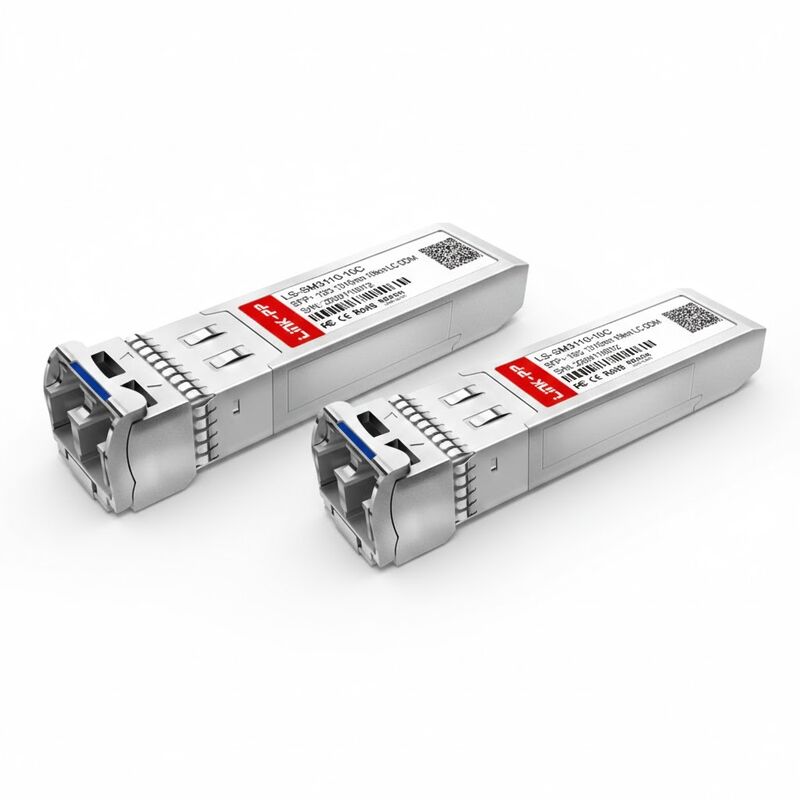

The HPE J9151A (HP X132 10G SFP+ LC LR Transceiver) is a high-performance 10-Gigabit SFP+ optical module designed for enterprise networks, data centers, service provider backbones, and baseband/remote radio head applications. It supports the 10GBASE-LR standard and delivers up to 10 km transmission over single-mode fiber (SMF) with low power consumption and full DDM/DOM functionality.
The HPE J9151A is designed for HPE ProCurve & Aruba Networks switches, supporting any device with standard 10G SFP+ LR interfaces.
| Feature | Description |
|---|---|
| Brand | HPE (Hewlett Packard Enterprise) |
| Part Number | J9151A |
| Product Name | HP X132 10G SFP+ LC LR Transceiver |
| Form Factor | SFP+ |
| Data Rate | 10.3125 Gbps |
| Standard | 10GBASE-LR (IEEE 802.3ae) |
| Wavelength | 1310 nm |
| Interface | LC Duplex |
| Fiber Type | Single-Mode Fiber (SMF) |
| Parameter | Value |
|---|---|
| Maximum Distance | 10 km |
| Transmitter Type | DFB Laser |
| Receiver Type | PIN |
| TX Power | -8.2 to 0.5 dBm |
| Receiver Sensitivity | < -14.4 dBm |
| Power Budget | 6.2 dB |
| Receiver Overload | 0.5 dBm |
| Extinction Ratio | > 3.5 dB |
| Specification | Details |
|---|---|
| Fiber Type | 9/125 µm Single-Mode Fiber |
| Compliance | ITU-T G.652 / ISO/IEC 793-2 Type B1 |
| Supported Cable Length | 2 m to 10 km |
| Parameter | Value |
|---|---|
| Power Consumption (Typical) | 0.9 W |
| Power Consumption (Maximum) | 1.0 W |
| Digital Diagnostics | Supported (DDM/DOM, SFF-8472) |
| Item | Value |
|---|---|
| Dimensions (D × W × H) | 5.57 × 1.38 × 1.19 cm (2.19 × 0.54 × 0.47 in) |
| Weight | 0.02 kg (0.04 lb) |
| Form Factor | SFP+ Hot-Pluggable |
| Condition | Range |
|---|---|
| Operating Temperature | 0°C to 70°C (Commercial Grade) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 0% to 85%, non-condensing |
| Operating Altitude | Up to 3,000 m (10,000 ft) |
