> 製品 > QSFPのおり > 4-2170808-4 zQSFP+/QSFP28 28Gb/s Cage Assembly Ganged 1x2

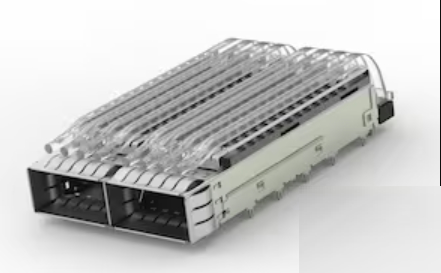

4-2170808-4 zQSFP+/QSFP28 28Gb/s Cage Assembly Ganged 1x2

プロダクト細部

起源の場所: 中国広州

ブランド名: LINK-PP

証明: ISO 9001,ISO 14001,UL,SGS,REACH168

モデル番号: 4-2170808-4

支払及び船積みの言葉

最小注文数量: 10/100/25K

価格: $3-$12

パッケージの詳細: 20/トレイ

受渡し時間: 3日以内に株式船で

支払条件: TT、Net30/60/90日

供給の能力: 350K/月

最もよい価格を得なさい
ハイライト:

Ganged QSFP28 Cage

,

TE Connectivity 4-2170808-4

,

28Gb/s Cage Assembly

タイプ:
QSFP28ケージ
ヒートシンク:
終了:
プレスフィット
密閉可能:
いいえ
部品番号:
4-2170808-4
動作温度範囲:
-40 - 85°C
取り付けタイプ:
穴を通して
ROHSステータス:
はい
タイプ:
QSFP28ケージ
ヒートシンク:
終了:
プレスフィット
密閉可能:
いいえ
部品番号:
4-2170808-4
動作温度範囲:
-40 - 85°C
取り付けタイプ:
穴を通して
ROHSステータス:
はい
4-2170808-4 zQSFP+/QSFP28 28Gb/s Cage Assembly Ganged 1x2



4-2170808-4 QSFP28 Cage Quick Details

  • Form Factor Compatibility: QSFP28 / QSFP56
  • Data Rate: Up to 28 Gb/s
  • Operating Temperature Range: –40 °C to +85 °C (–40 °F to +185 °F)
  • Cage Type: Ganged
  • Sealable: No
  • Thermal Accessory: Heat Sink (Pin Type, Anodized Black Finish)
  • EMI Containment: Internal and External EMI Springs
  • Included Components: Lightpipe
  • PCB Contact Termination: Through-Hole Press-Fit, Tin Plated, 2.05 mm Tail Length
  • Recommended PCB Thickness: 1.57 mm (0.062 in)
  • Cage Material: Nickel Silver
  • Heat Sink Height: 4.2 mm
  • UL Flammability Rating: UL 94V-0
  • Packaging: Box & Tray



4-2170808-4 1X2 Ganged Cage Applications

This cage assembly is designed for high-speed data transmission applications, including:

  • Data center switches and routers
  • Telecom and networking equipment
  • Backplane and board-to-board interconnects
  • Systems requiring robust thermal and EMI control under wide ambient temperature conditions



Mechanical & Environmental Considerations

  1. Nickel Silver Cage: Provides excellent mechanical strength and conductivity for shielding
  2. Heat Sink: Assists in heat dissipation in dense module configurations
  3. Operating Temperature Range: Suitable for industrial, telecom, and rugged environments
  4. Non-Sealable Design: Should be protected from dust, moisture, or contaminant ingress where necessary
