プロダクト細部
Place of Origin: China
ブランド名: LINK-PP
証明: RoHS compliant, REACH compliant, UL certified
Model Number: 74991114410
支払及び船積みの言葉
Minimum Order Quantity: 400/2000/10K/25K
価格: $0.06-$0.6
Packaging Details: Tape & Reel, Tube
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Products: |

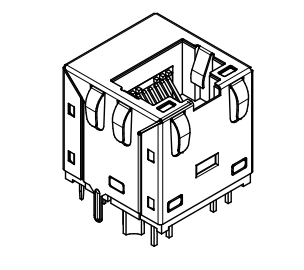

74991114410 RJ45 Vertical Connenctor |
Number of Ports: |
1 |
Tab: |
Vertical |
EMI Fingers: |
Yes |
Mount: |
THT |
Data Rate: |
1000BASE-T |
LED (Left-Right): |
yellow/green-yellow/green |
PHY Chip Mode: |
Current |
Products: |
74991114410 RJ45 Vertical Connenctor |
Number of Ports: |
1 |
Tab: |
Vertical |
EMI Fingers: |
Yes |
Mount: |
THT |
Data Rate: |
1000BASE-T |
LED (Left-Right): |
yellow/green-yellow/green |
PHY Chip Mode: |
Current |
| Attribute | Value |
|---|---|
| Products | 74991114410 RJ45 Vertical Connector |
| Number of Ports | 1 |
| Tab | Vertical |
| EMI Fingers | Yes |
| Mount | THT |
| Data Rate | 1000BASE-T |
| LED (Left-Right) | yellow/green-yellow/green |
| PHY Chip Mode | Current |
| Property | Specification |
|---|---|
| Plastic Housing Material | Thermoplastic PA66, Black |
| Housing Flammability | UL94 V-0 |
| Shielding Material | Brass |
| Shielding Plating | 30µ" Nickel |
| Contact Material | Phosphor Bronze |
| Contact Plating | 30µ" Gold over 50µ" Nickel |
| Mounting Type | THT (Through-Hole Technology) |
| Orientation | Vertical |
| Mating Cycles | 750 Cycles |
| Property | Test Conditions | Value |
|---|---|---|
| Data Rate | - | 1000BASE-T |
| PoE | - | non-PoE |
| Inductance | 100 kHz / 100 mV @ 8 mA | 350 µH min. |
| Insulation Test Voltage | 1 minute | 2250 V (DC) min. |
| Turns Ratio | - | 1:1 ±3% |
| Insertion Loss (IL) | 1-100 MHz | -1 dB max. |
| Return Loss (RL) | 1-30 MHz | -18 dB min. |
| Return Loss (RL) | 30-60 MHz | -13.5 dB min. |
| Return Loss (RL) | 60-80 MHz | -12 dB min. |
| Return Loss (RL) | 80-100 MHz | -10 dB min. |
| Crosstalk | 1-60 MHz | -32 dB min. |
| Crosstalk | 60-100 MHz | -30 dB min. |
| Common Mode Rejection (CMRR) | 1-30 MHz | -35 dB min. |
| Common Mode Rejection (CMRR) | 30-60 MHz | -32 dB min. |
| Common Mode Rejection (CMRR) | 60-100 MHz | -30 dB min. |
| Property | Specification |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Storage Conditions | < 40°C; < 75% RH (in original packaging) |
| Moisture Sensitivity Level (MSL) | 1 |
