プロダクト細部
起源の場所: 中国
ブランド名: LINK-PP
証明: ISO 9001,ISO 14001,UL,SGS,REACH168
モデル番号: 1-1840661-7
支払及び船積みの言葉
最小注文数量: 50/500/1000/25K
価格: $0.09-$1.85
パッケージの詳細: 50個/トレイ,20個/トレイ/カートン,32*30*31cm,8KGS (1000個) /カートン
受渡し時間: ストック
支払条件: TT、NET30/60/90幾日
供給の能力: 4200K-PCS/Month
ポイント: |

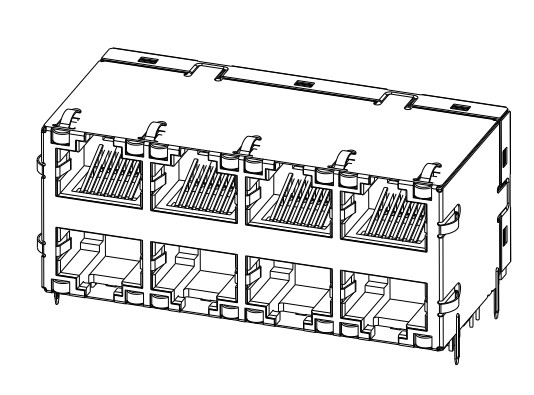

1-1840661-7 トランス付きRJ45コネクタ |
ポート数: |
積み重ねた 2X4 |
EMIタブ: |
はい |
LED インジケーター: |
左へ 右へ |
スピード: |
1000Base-T |
動作温度: |
0 ~ +70°C |
ポイント: |
1-1840661-7 トランス付きRJ45コネクタ |
ポート数: |
積み重ねた 2X4 |
EMIタブ: |
はい |
LED インジケーター: |
左へ 右へ |
スピード: |
1000Base-T |
動作温度: |
0 ~ +70°C |
|
RJ45 Connector with 1000 Base-T Integrated Magnetics |
|
|
Part Number |
1-1840661-7 |
|
Length |
28.12mm |
| Width | 59.07mm |
| Height | 25.50mm |
| Connector Type | RJ45 Multi-Port Jack |
|
LED Option |
GREEN ORANGE / GREEN ORANGE |
|
Latch |
TAB UP AND DOWN |
|
Number of Ports |
2X4 |
|
Transform |
INTEGRATED MAGNETICS |
|
PCB Mount Angle |
SIDE ENTRY |
|
UL Certification |
YES |
|
RoHS Compliant |
YES |
| Housing Material | Thermoplastic |
| Thermoplastic | UL94V-0 |
|
Shield EMI Tabs |
WITH |
|
Application |
10/100/1000 BASE-T |
|
Temperature Range |
0 TO 70℃ |
| Transmission mode | Full duplex |
| IMPEDANCE | 100 OHMS |
|
Turns Ratio |
(CHIP: CABLE)1:1 ALL FOUR PAIRS |
| INDUCTANCE (OCL) | 350uH MIN @100kHz, 0.1 VRMS, 8mADC BIAS FROM 0°C TO 70°C |
| Isolation voltage | 2250VDC(MAX) |
The MagJack 1-1840661-7 is a high-performance multi-port Integrated Connector Module designed for Gigabit Ethernet applications. It integrates four RJ-45 connectors with transformers and LED indicators in a compact form factor, providing a complete physical layer interface solution. The product features excellent electrical performance, reliable design, and comprehensive LED status indication, making it suitable for various network devices and communication equipment requiring Gigabit Ethernet Magjacks.
